SM65 Agricultural Drone
The SM65 model has a 62L capacity and is an agricultural drone with a cross-folding design. It boasts a sleek and streamlined appearance, making it easy to carry, and its operating efficiency can reach 25ha/h.
Weight:69kg (including battery)
Max. Take-off Weight: 111kg
Water Tank Capacity: 62L
Max. Flight Speed:15m/s
Hovering Duration:28mins (with no-load)
Hovering Duration:7mins (with full-load)
Spraying Width: 8-20m
Spraying Efficiency: 25ha/hour
Powerful Spraying. Maximum Efficiency
The SM65 model has a 62L capacity and is an agricultural drone with a cross-folding design. It boasts a sleek and streamlined appearance, making it easy to carry, and its operating efficiency can reach 25ha/h.
|
SM65 Model Agricultural Drone - Specifications |
|||
| Aerial Platform | Dimensions (folded) | 1240*840*872 mm | |
| Dimensions (unfolded) | 2919*3080*872 mm | ||
| Weight (excluding battery) | 34kg | ||
| Weight (including battery) | 49kg | ||
| Spraying System | Liquid Tank | Capacity | 62L |
| Nozzles | Nozzle Type | Centrifugal Nozzles | |
| Quantity | 2 | ||
| Spray Width | 8-20m | ||
| Atomizing Size | 30-400µm | ||
| Pump | Quantity | 2 | |
| Max. System Flow Rate | 20L/min | ||
| Spreading System | Capacity | 87L | |
| Waterproof Grade | IP67 | ||
| Applicable Granule Size | 1-10mm | ||
| Propulsion System | Motor | Max. Tension (single motor) | 56kg |
| Electronic Speed Controller | Max. Continuous Operating Current | 120A | |
| Max. Operating Voltage (18S Lipo) | 60.9V | ||
| Obstacle Avoidance System | Front and Rear Obstacle Avoidance Radar | Quantity | 2 |
| Relative Height of Safe Obstacle Avoidance | ≥ 2m | ||
| Relative Speed of Sale Obstacle Avoidance | ≤ 8m/s | ||
| Terrain-following Radar | Quantity | 1 | |
| Max. Gradient (at flight speed of ≤ 2 m/s) | 45° | ||
| 360° Obstacle Avoidance Radar | Quantity | 1 | |
| Obstacle Avoidance Angle (upward) | 360° | ||
| Power System | Intelligent Battery | Quantity | 1 |
| Model | 18S 30000mAh | ||
| Size | 275*120*330 mm | ||
| Weight | 15 kg | ||
| Ambient Temperature for Charging | 10℃-45℃ | ||
| Smart Charger | Quantity | 1 | |
| Charging Input | 110V-240V 1200W*2 | ||
| Charging Output | 55A (single-channel charging) | ||
| Rated Power | 9000W | ||
SM65 Agricultural Drone
The SM65 model has a 62L capacity and is an agricultural drone with a cross-folding design. It boasts a sleek and streamlined appearance, making it easy to carry, and its operating efficiency can reach 25ha/h.

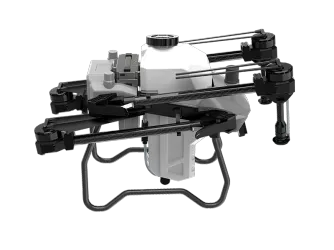

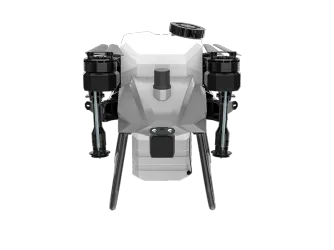

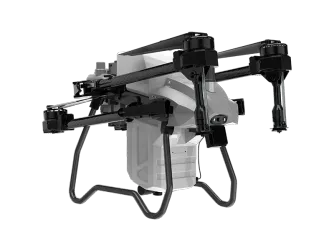

Spray Folding
Spray Folding
Spray Folding
Spray Folding
Spray Folding
Spray Folding
Spray Folding
Spray Folding
The Most Common Application Scenarios of Your Agricultural Drone
Agricultural drones are becoming increasingly essential in modern farming. They can be used for pesticide spraying, seeding, fertilizing, and more. Below are some of the most common applications — explore them and find the drone model that best fits your needs.

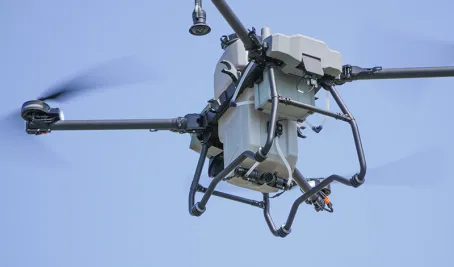

Real shot photos
Real shot photos
Real shot photos
The Video of SM65 Agricultural Drone
Below are videos showcasing the operation and real-world use of agricultural drones. These videos will give you a clearer understanding of the working principles and performance of agricultural drones in real agricultural production environments. Click to watch for detailed information on their various features.
Agricultural Drone Sh32
The SH300 agricultural drone features an upgraded cylindrical centrifugal nozzle, providing a wider spray coverage and higher efficiency. It's a foldable drone that combines spraying and easy transport in one compact design.
Agricultural Drone In Operation Sh40
The SH300 agricultural drone features an upgraded cylindrical centrifugal nozzle, providing a wider spray coverage and higher efficiency. It's a foldable drone that combines spraying and easy transport in one compact design.
Agricultural Drone In Operation Sh40
The SH300 agricultural drone features an upgraded cylindrical centrifugal nozzle, providing a wider spray coverage and higher efficiency. It's a foldable drone that combines spraying and easy transport in one compact design.
Agricultural Drone Sh160

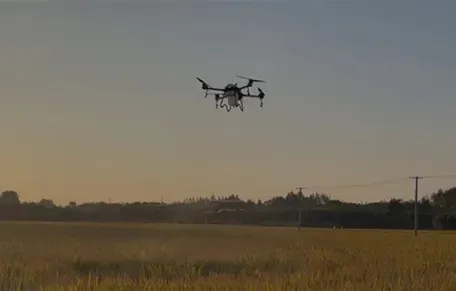

Agricultural Drone Sm65
Agricultural Drone Sh300
FAQ
Q: What is the maximum operating altitude of the drone?
Depending on the model, it can reach up to 120 meters or even higher.
Q: What surfaces can the cleaning drone clean?
It is suitable for various surfaces such as glass curtain walls, high-rise building exteriors, solar panels, and bridges.
Q: Do you provide after-sales training?
Yes. We offer online tutorials or on-site training services, and our support team is available 24/7.
